5/18/03 GeIL Golden Dragon PC3500 433MHz / PC3200 400MHz DDR
GeIL Golden Dragon PC3500 433MHz / PC3200 400MHz DDR
Dual Channel DDR Series


PC3200 400Mhz Golden Dragon Version:
- Hand Picked 5ns GeIL Chips
- WLCSP Memory features GeIL trademark on the wafer.
- Optimized SPD for Dual Channel DDR motherboards.

- classic Asian antique-type black retail pack
- Lifetime Warranty
- 6 Layers Ultra Low Noises Shielded Golden Color PCB board.
- Dragon Eye: One red led on PCB board for memory module ON/OFF detection.
- CAS 2 6-3-3 1T Running @ DDR400Mhz PC3200
- 2.5v-2.9V


PC3500 433Mhz Golden Dragon Version:
- Hand Picked 4.5ns GeIL Chips
- WLCSP Memory features GeIL trademark on the wafer.
- Optimized SPD for Dual Channel DDR motherboards

- classic Asian antique-type black retail pack
- Lifetime Warranty
- 6 Layers Ultra Low Noises Shielded Golden Color PCB board.
- Dragon Eye: One red led on PCB board for memory module ON/OFF detection.
- CAS 2 6-3-3 1T Running @ DDR433Mhz PC3500
- 2.5v-2.9V

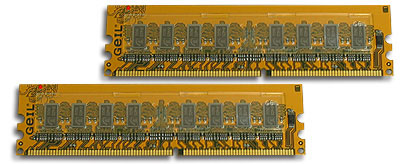

The retail package would contain two pieces of the High Performance DDR as shown below.

GeIL Corp, as one of the top memory manufacture for high-performance DDR memory, is proud to announce the revolutionary Golden Dragon Series to the ultimate PC enthusiasts. The Golden Dragon Series, unlike the traditional module using the TSOP packing, features the most advanced WLCSP (Wafer Level Chip Scale Packing) for the memory module. GeIL Corp is now first and the only memory manufacture that has the WLCSP technology ready for the high-end memory modules. Using the WLCSP, each die from wafer were directly map to the PCB board without any additional wiring/components and thus reduce the noises for the data signals. As the result of it, GeIL's Golden Dragon can achieve to a faster speed and enhance better performance for the system. The SPD for the Golden Dragon Dual Channel DDR Kit is optimized for the newest Intel's Canterwood, Springdale, E7205 and NVIDIA's Nforce2 chipset to take advantage of its full potential performance. Golden Dragon is simply now the best product for all the PC enthusiasts in the world.

The high speed is achieved from GeIL industry-leading engineering technology: Wafer Level Chip Scale Package (WLCSP). Each chip is directly mounted to the module PCB in its original wafer format and die size without any type of conventional packaging. Thus, there are no soldering legs as with the conventional method. This break thru technology not only dramatically reduces the electro-magnetic noise, the module also produces very little heat under stressed operation. The end result is high bus clock speed and low operational temperature. No heat spreader is required. And because of its low electro-magnetic noise (EMC), when equipped, the computer receives higher system-wide stability and greater over-clocking potential.

15/18/03 GeIL Golden Dragon Sereis PC4000 DDR500 Dual Channel DDR Kit!!

First and fastest in the industry! display with Abit IC7-G Intel Canterwood Chipset with 1000MHZ FSB!!

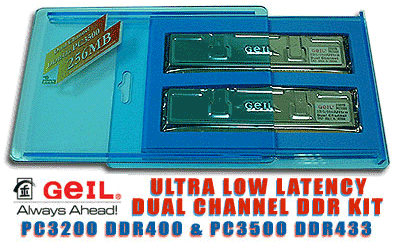

13/27/03 GeIL ULD Ultra Low Latency Dual Channel DDR Kit

GeIL Corp. introduces the NEW ULD Series, also known as the "Ultra Low Latency Dual Channel DDR Kit". The new ULD Series, which has enhanced SPD designed for the newest Dual Channel DDR technology. Our ULD seris DDR would benefit the Nvidia's Nforce2 and Intel's E7205 ("Granite Bay") chipset's motherboards for the maximum performance and reliability.

Currently GeIL's ULD Series provides two versions of the High Performance Dual Channel DDR Kits, the 512MB (256MB X 2), 1GB (512MB X 2) PC3200 400Mhz ULD and the 512MB (256MB X 2) , 1GB (512MB X 2) PC3500 433Mhz ULD. The ULD Series has the Ultra low latency of CAS = 2 and is paired up by our lab faculties with the completed testing procedures for validation and compatible purpose in order to assure GeIL's users with the highest quality of the Dual Channel DDR Kits. The detailed specifications are listed below:

PC3200 400Mhz ULD Version:



Hand Picked 5ns GeIL Chips

Tin Coated Platinum Copper Heat Spreader with Fashion-Designed Retail box

6 Layer Ultra Low Noise Shielded PCB

184pin High Performance DDR module

32x8 Low Density, Un-buffered

CAS 2 6-3-3 1T Running @ DDR400Mhz PC3200

CAS 2 5-2-2 1T Running @ DDR333Mhz PC2700

2.5v-2.9V



PC3500 433Mhz ULD Version:

Hand Picked 4.5ns GeIL Chips

Tin Coated Platinum Copper Heat Spreader with Fashion-Designed Retail box

Lifetime Warranty

6 Layer Ultra Low Noise Shielded PCB

184pin High Performance DDR module

32x8 Low Density, Un-buffered

CAS 2 6-3-3 1T Running @ DDR433Mhz PC3500

2.5v-2.9V

12/17/02 GeIL partners up with ABIT
".... As GeIL offers Fastest-DDR memory solution, GeIL also works closely with all of the largest motherboard manufactures in the world such as Abit to ensure the elite quality and performance with the affordable prices for all our customers...." ~ ABIT Motherboard

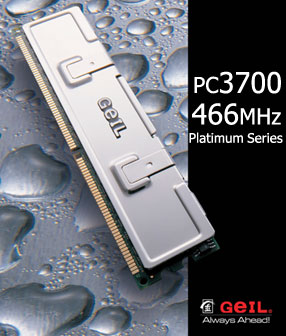

11/24/02 PC3700 466MHz DDr Platinum Series
Can't wait for the Golden Dragon PC3700 466MHz till Q1 2003? We have got a solution for you. PC3700 466MHz DDR Platinum Series will be available in Mid-December 2002.

11/18/02 World First PC3700 466MHz DDR Golden Dragon Reveal at Comdex Fall
GeIL proudly announce the first PC3700 466MHz DDR in the market! We achieve such high speed with hand picked GeIL 4ns DDR chip fitted with our own ultra low noise Golden PCB. PC3700 Golden Dragon will be ready to ship worldwide in Q1 2003.

11/15/02 Comdex Fall Las Vegas / PC3700 DDR466!!

OCSystem in working with GeIL will display of our latest overclcoked system in Comdex Fall Las Vegas @ GeIL booth, which is located @ Central Hall # 7559.

See Overclocked Pentium 4 3.0GHz running @ 700Mhz FSB with GeIL's new PC3700 DDR466!

Also OCSystem latest Overclocked Pentium 4 @ 3.75GHz 652Mhz FSB with GeIL PC3500 DDR433 Ultra Platinum Series. This system in capable of 20K 3DMark!

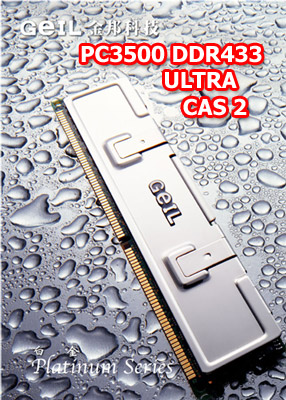

09/30/02 GeIL PC3500 DDR433 ULTRA Platinum Series CAS 2

GeIL PC3500 DDR433 ULTRA Platinum Series CAS2

PC3500 433MHz DDR (217x2)
Hand Picked GL2000 4.5ns Chip
Tin Coated Copper Heat Spreader
CAS 2 6-3-3 1T DDR433
CAS 2 6-3-3 1T DDR400
CAS 2 5-2-2 1T DDR333
2.5v-3.1v

09/29/02 GeIL products are now available in Germany / Europe
GeIL welcomes OC-WEAR as our dealer for Germany / European market.

09/18/02 GeIL products are now available in UK / Europe
GeIL welcomes JK Trading / pc-memory-upgrade.co.uk as our dealer for European market.

08/29/02 GeIL PC3500 DDR433 Platinum Series
GeIL USA announce our new PC3500 DDR433 Platinum Sereis. Using GeIL GL200 4.5ns chips with tin coated copper heat spreader and neon green clear acrylic case. CAS 2.5 @ DDR433 and CAS 2 @ DDR 400, 2.7-3.1v.

08/01/02 PC3200 400MHz DDR Ultra
GeIL USA introduce PC3200 400MHz DDR Ultra Series. Capable of 200MHz x 2 (DDR400) @ CAS 2 6-3-3 1T command timming. Lower CAS latency and aggressive timming makes our ULTRA DDR400 faster than others!

07/11/02 World First DDR433 System!
OCSystem produce the world's first DDR433 system with Intel Pentium 4 processor running at 652MHz FSB with GeIL PC3500 433MHz DDR memory.

07/03/02 PC3500 433MHz DDR


GeIL announce the first PC3500 433MHz DDR in the market! We achieve such high speed with hand picked GeIL GL2000 6ns DDR chip fitted with our own ultra low noise PCB and cover with pure copper heat spreader.

PC3500 433MHz DDR are available in 265MB and 512MB.

07/03/02 GeIL


GEiL modules are now fitted with pure copper heat spreader and clear acrylic package with air sealed anti-static bag.

06/10/02 PC3200 400MHz DDR
GEIL USA Debuts PC3200 400MHz DDR SDRAM using GEIL GL2000 Hand Picked 6ns Chips with Copper Heat Spreader to Achieve Astonishing Performance.
